Code 220V/50Hz |
Model | Connection Size | Horsepower | Weight (kg) | Capacitance 220V |
| 88029604 | SPH075 | 1.5″ (50mm) ID / 2″ (63mm) OD | 0.75hp | 13.6 | 20μF |
| 88029605 | SPH100 | 1.5″ (50mm) ID / 2″ (63mm) OD | 1.0hp | 13.8 | 25μF |
| 88029607 | SPH150 | 1.5″ (50mm) ID / 2″ (63mm) OD | 1.5hp | 14.0 | 25μF |
| 88029608 | SPH200 | 1.5″ (50mm) ID / 2″ (63mm) OD | 2.0hp | 14.2 | 30μF |
| 9023212 | SPH100-II | 1.5″ (50mm) ID / 2″ (63mm) OD | 1.0hp | 14.7 | 30μF/16μF |
| 9023212 | SPH100-II | 1.5″ (50mm) ID / 2″ (63mm) OD | 1.5hp | 15.0 | 30μF/16μF |
1
/
of
1
advance-supplies

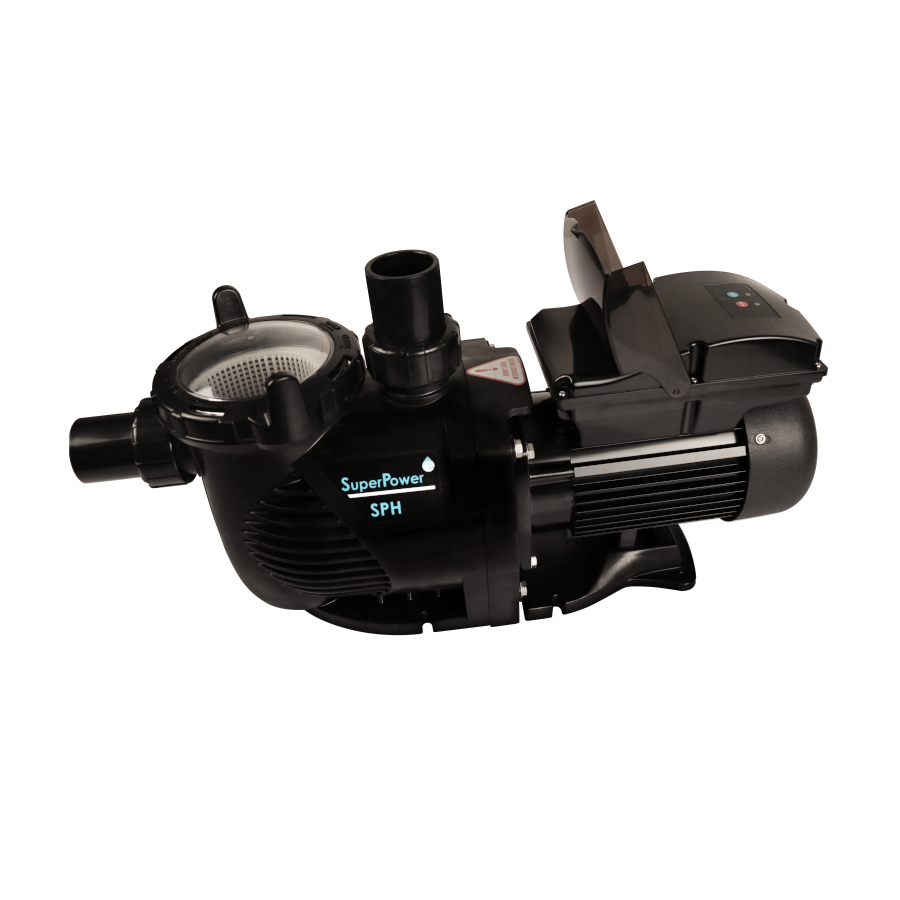

Emaux SPH Super-Power Pumps – SPH075 / SPH100 / SPH150 / SPH200 / SPH100-II / SPH150-II
Emaux SPH Super-Power Pumps – SPH075 / SPH100 / SPH150 / SPH200 / SPH100-II / SPH150-II
Regular price
$353.00 USD
Regular price
Sale price
$353.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPH Series Super-Power Pump
For residential pools and spas
PRODUCT FEATURES:
- Direct replacement for other model pumps
- Asynchronous, two poles motor
- Class insulation 155(F)
- Thermal or over current protection
- Pump casing ABS + glass fiber, Impeller PPO, Strainer basket and base in PP + glass fiber
- Motor shaft – S.S.316, Seals bellows – EPDM, stationary face – SIC, rotating face – Graphite, Spring – S.S.316
- Self-Priming up to 3.3m above water level
- Testing pressure 50 PSI (3.5 Bar)
- Basket Volume 2 litres
- IPX5 Waterproof Standard
2-SPEED PUMP
The newly released Super Power 2-speed pump represents a breakthrough in pool pump technology. The user is able to select a HIGH speed (2850rpm) or LOW speed (1450rpm) on the pump’s control pad. The LOW speed feature offers low energy consumption, low noise level, and a longer lifespan of the product.
- 2-speed models: Dual capacitors motor start wiring
- Handy control pad to select High or Low speed.
Technical Specification:
