Dimensions:

1.8m height

0.6m width

Filtration speed: 51m2/h

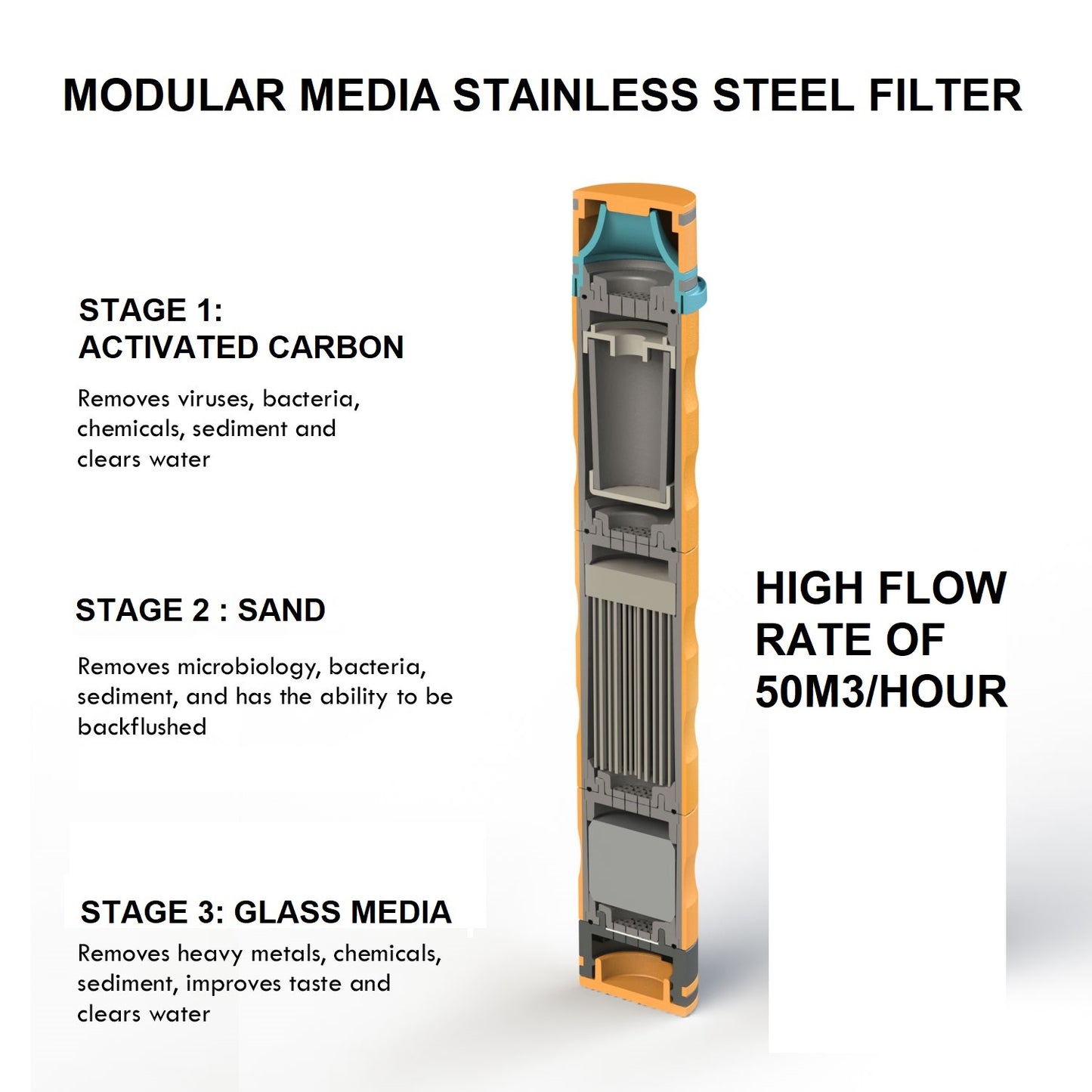

Advantages of the Advanced Stainless Steel 316 Media Filter

1. Optimized Space Utilization

2. Lightweight and Easier Handling with Reduced Structural Load

3. Simplified Maintenance with Full Access to Sand Media Bed

4. Shorter Backwash Cycle – Approximately 10 Minutes at Equivalent Flow Rate

5. Can put sand or glass media

Comparison of Advanced Filter Layout vs. Traditional Sand Filters

Dimensional Comparison: Fiberglass Sand Filter vs. Advanced Sand Filter

Distinctive Feature – Multiple Filters within a Single Shell

• Each filter contains 420 kg of silica sand

• Filtration Area Equivalence: 5 Advanced Filters = 1 Fiberglass Horizontal Sand Filter (3 meters long)

• Media Weight Comparison:

  • Advanced Filter: 2 tons of sand

  • Fiberglass Filter: 9.3 tons of sand and gravel

Efficiency of Filtration and Backwash Process

• Conventional Horizontal Sand Filter: Requires trapped silt to travel a long distance before exiting the filter during backwash.

• Advanced Sand Filter: Silt is expelled within a shorter 300 mm distance from the sand bed, reducing backwash time and conserving water.

• Overall, the Advanced Stainless Steel 316 Sand Filter is the most efficient sand filtration system available.

Ease of Maintenance and Sand Replacement

• Individual filters can be isolated and replaced separately, ensuring uninterrupted filtration.

• In a dual-bank setup of 5 filters each, only 1 filter (10%) is taken offline for media replacement.

• Minimal downtime: The filter is operational within three hours after replacement.

Efficient and Safe Sand Replacement Process

• Full access to the media bed eliminates the need for special ventilation equipment.

• Workers do not require additional protective gear for the replacement process.

Challenges with Traditional Horizontal Sand Filters

• Small access manholes require workers to enter the filter for sand removal.

• Media must be manually bagged and passed out, requiring extensive labor and ventilation for safety.

Backwash Water Consumption per Cycle

Traditional Horizontal Sand Filters (Mild Steel/Fiberglass)

• Duration: 15 minutes per filter (with air scouring)

• Water Usage: 30,000 liters (30 cubic meters) per cycle

• Without air scouring: 60,000 liters (60 cubic meters) per cycle

Advanced Stainless Steel 316 Sand Filter

• Duration: 10 minutes per filter

• Water Usage: 20,000 liters (20 cubic meters) per cycle

Annual Water Consumption Due to Backwash (55 Cycles per Year)

• Conventional Horizontal Sand Filter:

  • Air Scoured: 1,650 m³/year

  • Without Air Scouring: 3,300 m³/year

• Advanced Stainless Steel 316 Sand Filter: 1,100 m³/year

Summary of Cost Savings in Water Consumption

• Annual water savings range between 550 m³ to 2,200 m³ per filter.
