CHEM-FEED® C2

Superior Diaphragm Metering Technology, Leading Edge Features and Materials

Max Feed: .02 – 16.5 GPH (.09 – 62.5 LPH)

Max Pressure: 175 PSI (12 bar)

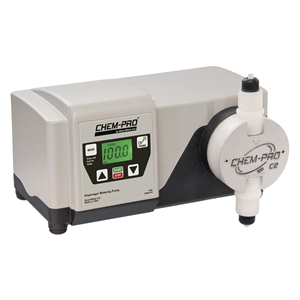

The CHEM-FEED® C2 Diaphragm Metering Pump delivers accurate chemical feed quietly and efficiently against high system pressures. With an easy-to-read LCD user interface and optional pulse/frequency/4-20 mA input capability, the CHEM-FEED® C2 pump has the power and flexibility you need to take control of your fluid management process.

The C2’s exclusive DiaFlex® Diaphragms will last the life of the pump, eliminating the need for expensive rebuild kits

• Variable speed, Smooth motor driven chemical feed
• Enclosure Rating: NEMA 4X (IP66)
• Control Methods: Manual, Remote Analog/Digital
• 4-20mA (C2V only), Pulse Input (C2V only) and Manual Speed Control
• 166 RPM (Max strokes per minute)
• Back Lit LCD display
• Leak Detection – Built-in Diaphragm Failure Detection (DFD)
• Exclusive Diaflex® Single Layer PVDF diaphragm.
