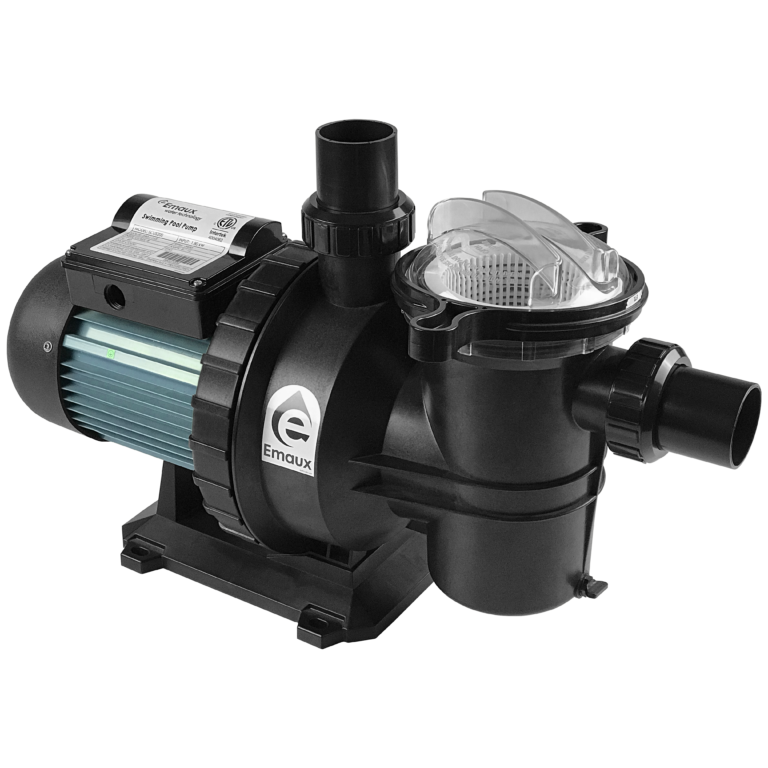

Emaux SC Series Pump – SC050 / SC075 / SC100 / SC150 / SC200

Emaux SC Series Pump – SC050 / SC075 / SC100 / SC150 / SC200

$450.00 SGD
$450.00 SGD
Sale Sold out
Shipping calculated at checkout.

SC Series Pump

For medium sized residential pools



Product Features:

  • 1.5 inch suction and discharge ports
  • Asynchronous, two-pole motor
  • Class insulation: 130(B)
  • IPX5 Waterproof standard
  • Built-in thermal protection
  • Overload protection
  • External heat sink
  • Available in 50Hz or 60Hz for 220V/110V
  • Specially designed unions compatible for both imperial and metric standards
  • Self-priming up to 2m above water level
  • Testing pressure (50 PSI / 3.5Bar)
  • 316 stainless steel shaft
  • 316 stainless steel mechanical seal
  • Basket volume 2.5 litres
  • Low noise level, low energy and easy maintenance



Technical Specification:

Code
220V/50Hz 		Code
380V/50Hz 		Model Connection Size Horsepower Weight (kg) Capacitance
220V
88021703 88021803 SC050 1.5″ / 50mm 0.5hp 10.4 14μF
88021704 88021804 SC075 1.5″ / 50mm 0.75hp 12.1 20μF
88021705 88021805 SC100 1.5″ / 50mm 1.0hp 13.4 25μF
88021707 88021807 SC150 1.5″ / 50mm 1.5hp 14.9 25μF
88021708 88021808 SC200 1.5″ / 50mm 2.0hp 15.4 30μF
